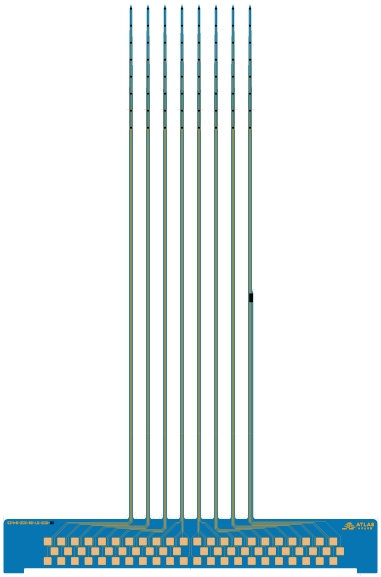

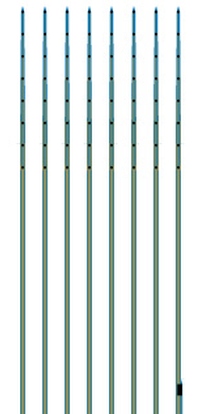

Shaft length (LTotal)
6 mm
Number of shafts (NShaft)
8
Shaft pitch (PShaft)
200 µm
Shaft width (WShaft)
51 µm
Number of electrodes (NEl)
64 (8 x 8)
Electrode Pitch (PEl)
200 µm
Electrode Length (LEl)
1400 µm
Electrode size (DEl), material (EM), probe thickness (T)
Ø 20 µm Pt, 50 µm
Size of the optional, internal reference electrode
